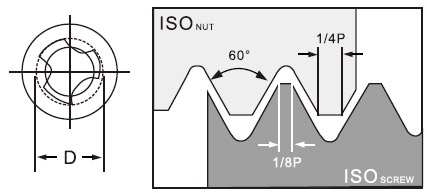

FFMS 鎢鋼銑牙刀-小徑-ISO公制
(1)牙的長度-可到2D
| 型號 MODEL |
牙 (t) |
螺距 (Pitch) |
外徑 (D) |
有效長 (H) |
刃數 (F) |
柄徑 (d) |
全長 (AL) |
|---|---|---|---|---|---|---|---|
| FFMS0072 | M1.0x0.25 | 0.25 | 0.72 | 2.5 | 3 | 4 | 50 |
| FFMS0092 | M1.2x0.25 | 0.25 | 0.92 | 2.8 | 3 | 4 | 50 |
| FFMS012 | M1.6x0.35 | 0.35 | 1.2 | 3.3 | 3 | 3 | 50 |
| FFMS0154 | M2.0x0.4 | 0.4 | 1.54 | 4.4 | 3 | 3 | 50 |
| FFMS0163 | M2.2x0.45 | 0.45 | 1.63 | 4.8 | 3 | 3 | 50 |
| FFMS0196 | M2.5x0.45 | 0.45 | 1.96 | 5.3 | 3 | 4 | 50 |
| FFMS024 | M3.0x0.5 | 0.5 | 2.4 | 6.4 | 3 | 4 | 50 |
| FFMS0275 | M3.5x0.6 | 0.6 | 2.75 | 7.4 | 3 | 4 | 50 |
| FFMS0315 | M4.0x0.7 | 0.7 | 3.15 | 8.6 | 3 | 6 | 60 |
| FFMSO40 | M5.0x0.8 | 0.8 | 4 | 12 | 3 | 6 | 60 |
| FFMSO475 | M6.0x1.0 | 1 | 4.75 | 13 | 3 | 6 | 60 |
| FFMS0595 | M8.0x1.25 | 1.25 | 5.95 | 17.3 | 3 | 6 | 60 |
| FFMS065 | M8.0x1.25 | 1.25 | 6.5 | 17.3 | 3 | 8 | 60 |
| FFMS079 | M10.0x1.5 | 1.5 | 7.9 | 22 | 3 | 8 | 60 |
| FFMS095 | M12.0x1.75 | 1.75 | 9.5 | 25.5 | 3 | 10 | 80 |
| FFMS099 | M14.0x2.0 | 2 | 9.9 | 29 | 3 | 10 | 80 |
| FFMS119 | M16.0x2.0 | 2 | 11.9 | 33 | 4 | 12 | 80 |
| FFMS159 | M20.0x2.5 | 2.5 | 15.9 | 42 | 4 | 16 | 100 |
(2)牙的長度-可到3D
| 型號 MODEL |
牙 (t) |
螺距 (Pitch) |
外徑 (D) |
有效長 (H) |
刃數 (F) |
柄徑 (d) |
全長 (AL) |
|---|---|---|---|---|---|---|---|
| FFMSL0106 | M1 .4x0.3 | 0.3 | 1.06 | 3.9 | 3 | 3 | 50 |
| FFMSL012 | M1 . 6x0 . 35 | 0.35 | 1.2 | 5.1 | 3 | 3 | 50 |
| FFMSL0154 | M2.0x0.4 | 0.4 | 1.54 | 6.1 | 3 | 3 | 50 |
| FFMSL0196 | M2.5x0.45 | 0.45 | 1.96 | 7.6 | 3 | 4 | 50 |
| FFMSL024 | M3.0x0.5 | 0.5 | 2.4 | 9.3 | 3 | 4 | 50 |
| FFMSL0315 | M4.0x0.7 | 0.7 | 3.15 | 12.4 | 3 | 6 | 60 |
| FFMSL040 | M5.0x0.8 | 0.8 | 4 | 15.6 | 3 | 6 | 60 |
| FFMSL0475 | M6.0x1 .0 | 1 | 4.75 | 19 | 3 | 6 | 60 |
| FFMSL0595 | M8.0x1 .25 | 1.25 | 5.95 | 24.3 | 3 | 6 | 60 |
| FFMSL065 | M8.0x1 .25 | 1.25 | 6.5 | 24.3 | 3 | 8 | 60 |
| FFMSL079 | M10x1.5 | 1.5 | 7.9 | 31 | 3 | 8 | 60 |
| FFMSL095 | M12x1 .75 | 1.75 | 9.5 | 36.5 | 3 | 10 | 80 |
