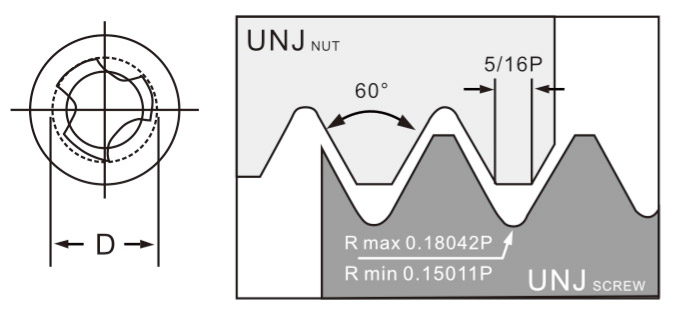

FFMUNJ 鎢鋼銑牙刀-UNJ
| 型號 MODEL |
牙 (T) |
螺距 (Pitch) |
外徑 (D) |
有效長 (H) |
刃數 (F) |
柄徑 (d) |
全長 (AL) |
底孔尺寸 (mm) |
|
|---|---|---|---|---|---|---|---|---|---|
| UNJC | UNJF | ||||||||
| FFMUNJ3206 | 0 138"(#6) | 0.190"(#10) | 32 | 2.7 | 11 | 3 | 6 | 60 | 2.8 |
| FFMUNJ2806 | 0.250"(1/4") | 28 | 5.4 | 19.5 | 3 | 6 | 60 | 5.6 | |
| FFMUNJ2406 | 0.190"(#10) | 24 | 3.7 | 14.9 | 3 | 6 | 60 | 4 | |
| FFMUNJ2408 | 0.3125"(5/16") | 24 | 6.7 | 24.1 | 3 | 8 | 60 | 7 | |
| FFMUNJ2006 | 0.250"(1/4") | 20 | 5 | 19.5 | 3 | 6 | 60 | 5.3 | |
| FFMUNJ2010 | 0.4375"(7/16") | 20 | 9.6 | 33.5 | 3 | 10 | 75 | 10 | |
| FFMUNJ1808 | 0.3125"(5/16") | 0.5625"(9/16") | 18 | 6.4 | 24.1 | 3 | 8 | 60 | 6.75 |
| FFMUNJ1608 | 0.375"(3/8") | 0.750"(3/4") | 16 | 7.7 | 29 | 3 | 8 | 60 | 8.1 |
| FFMUNJ1410 | 0.4375"(7/16") | 0.875"(7/8") | 14 | 9.2 | 33.5 | 3 | 10 | 75 | 9.5 |
| FFMUNJ1310 | 0.500"(1/2") | 13 | 9.9 | 38.5 | 3 | 10 | 75 | 11 | |
