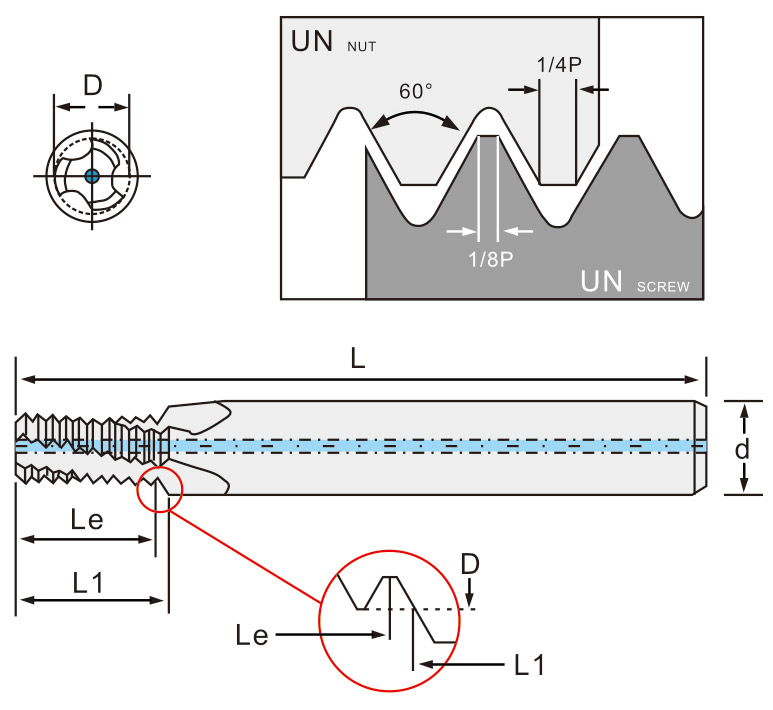

FFWU 鎢鋼內冷螺紋銑牙刀-UN美制
| 型號 MODEL |
牙(T) | 螺距 (Pitch) |
外徑 (D) |
牙長 (H) |
刃長 (L1) |
刃數 (F) |
柄徑 (d) |
全長 (AL) |
齒數 (Zt) |
底孔尺寸 (mm) |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UNC | UNF | UNEF | ||||||||||
| FFWU2404 | No.10-24 | 5116",318"x24 | 9/1 6"-11/1 6" | 24 | 3.58 | 50 | 7.9 | 3 | 4 | 50 | 7 | 3.8 |
| FFWU2406 | No.12-24 | 5/16",318"x24 | 9/1 6"-11/1 6" | 24 | 4.15 | 60 | 9 | 3 | 6 | 60 | 8 | 4.5 |
| FFWU2006 | 1/4"x20 | 711 6", 1/2"x20 | 3/4"-1" | 20 | 4.88 | 60 | 9.5 | 3 | 6 | 60 | 7 | 5.2 |
| FFWU18081 | 5/16"x18 | 9116",5/8"x18 | 11/16"-111/16" | 18 | 6.15 | 60 | 12 | 3 | 8 | 60 | 8 | 6.5 |
| FFWU1608 | 3/8"x16 | 3/4"x16 | 16 | 7.65 | 60 | 15.1 | 3 | 8 | 60 | 9 | 8 | |
| FFWU14101 | 7/16"x14 | 7/8"x14 | 14 | 9 | 75 | 17.2 | 3 | 10 | 75 | 9 | 9.3 | |
| FFWU1312 | 1/2"x13 | 13 | 10.35 | 75 | 20.5 | 4 | 12 | 75 | 10 | 10.8 | ||
| FFWU12121 | 9/16"x12 | 1"-1 1/2"x1 2 | 12 | 11.8 | 75 | 22.2 | 4 | 12 | 75 | 10 | 12.3 | |
| FFWU3204 | No.10-32 | No.12-3/8"x32 | 32 | 3.8 | 9.5 | 9.9 | 3 | 4 | 50 | 12 | 4 | |
| FFWU3206 | No.12-3/8"x32 | 32 | 4.4 | 11.1 | 11.5 | 3 | 6 | 60 | 14 | 4.7 | ||
| FFWU2806 | No.12,1/4"x28 | 7/16",1/2"x28 | 28 | 4.3 | 10.9 | 11.3 | 3 | 6 | 60 | 12 | 4.6 | |
| FFWU2806 | 1/4"x28 | 7/16",1/2"x28 | 28 | 5.15 | 12.7 | 13.1 | 3 | 6 | 60 | 14 | 5.5 | |
| FFWU2810 | 7/16",1/2"x28 | 28 | 9.9 | 21.8 | 22.2 | 3 | 10 | 75 | 24 | 10.2 | ||
| FFWU2404 | No.10-24 | 5116",3/8"x24 | 9/16",11/16"x24 | 24 | 3.58 | 9.5 | 10 | 3 | 4 | 50 | 9 | 3.8 |
| FFWU2406 | No.12-24 | 5116",318"x24 | 9/16",11116"x24 | 24 | 4.15 | 10.6 | 11.1 | 3 | 6 | 60 | 10 | 4.5 |
| FFWU2408 | 5116",318"x24 | 9/16",11116"x24 | 24 | 6.68 | 15.9 | 16.4 | 3 | 8 | 60 | 15 | 6.8 | |
| FFWU2410 | 3/8"x24 | 9116",11/16"x24 | 24 | 8.2 | 19 | 19.6 | 3 | 10 | 75 | 18 | 8.5 | |
| FFWU2414 | 9116",11/16"x24 | 24 | 12.9 | 28.6 | 29.1 | 4 | 14 | 100 | 27 | 13.2 | ||
| FFWU2006 | 1/4"x20 | 7116",1/2"x20 | 3/4"-1"x20 | 20 | 4.88 | 12.7 | 13.3 | 3 | 6 | 60 | 10 | 5.2 |
| FFWU2010 | 7116",1/2"x20 | 3/4"-1"x20 | 20 | 9.6 | 21.6 | 22.2 | 3 | 10 | 75 | 17 | 9.8 | |
| FFWU2012 | 1/2"x20 | 3/4"-1"x20 | 20 | 11.1 | 25.4 | 26 | 4 | 12 | 75 | 20 | 11.5 | |
| FFWU2018 | 3/4"-1"x20 | 20 | 17.4 | 38.1 | 38.7 | 4 | 18 | 100 | 30 | 17.8 | ||
| FFWU18082 | 5/16"x18 | 9/16",5/8"x18 | 11116%1 11/16"x18 | 18 | 6.15 | 15.5 | 16.2 | 3 | 8 | 60 | 11 | 6.5 |
| FFWU1814 | 9/16",5/8"x18 | 11116%1 11/16"x18 | 18 | 12.5 | 28.2 | 28.9 | 4 | 14 | 100 | 20 | 12.8 | |
| FFWU1816 | 5/8"x18 | 11116"-111/16"x18 | 18 | 14.1 | 31 | 31.7 | 4 | 16 | 100 | 22 | 14.5 | |
| FFWU1608 | 3/8"x16 | 3/4"x16 | 16 | 7.65 | 19 | 19.8 | 3 | 8 | 60 | 12 | 8 | |
| FFWU1618 | 3/4"x16 | 16 | 17 | 38.1 | 38.8 | 4 | 18 | 100 | 24 | 17.5 | ||
| FFWU14102 | 7/16"x14 | 7/8"x14 | 14 | 9 | 21.8 | 22.7 | 3 | 10 | 75 | 12 | 9.3 | |
| FFWU1420 | 7/8"x14 | 14 | 19.9 | 43.5 | 44.4 | 4 | 20 | 100 | 24 | 20.5 | ||
| FFWU1312 | 1/2"x13 | 13 | 10.35 | 25.4 | 26.4 | 4 | 12 | 80 | 13 | 10.8 | ||
| FFWU12122 | 9/16"x12 | 1"-11/2"x12 | 12 | 11.8 | 27.5 | 28.6 | 4 | 12 | 80 | 13 | 12.3 | |
| FFWU1220 | 1"-11/2"x12 | 12 | 19.9 | 50.8 | 51.9 | 4 | 20 | 100 | 24 | 23.5 | ||
| FFWU1114 | 5/8"x11 | 11 | 13.1 | 32.3 | 33.5 | 4 | 14 | 100 | 14 | 13.5 | ||
| FFWU1016 | 3/4"x10 | 10 | 15.9 | 38.1 | 39.4 | 4 | 16 | 100 | 15 | 16.5 | ||
| FFWU0920 | 7/8"x9 | 9 | 19 | 45.2 | 46.6 | 4 | 20 | 100 | 16 | 19.5 | ||
| FFWU0820 | 1"x8 | 8 | 19.9 | 50.8 | 52.4 | 4 | 20 | 100 | 16 | 22 | ||
